A wood chipper machine is an industrial tool that cuts logs, branches, and wood waste into small, evenly sized wood chips. Industries use these chips for biomass fuel, landscaping, paper production, and composting. Below is a step-by-step explanation of how the machine works.
Wood Chipper Machine: How It Works

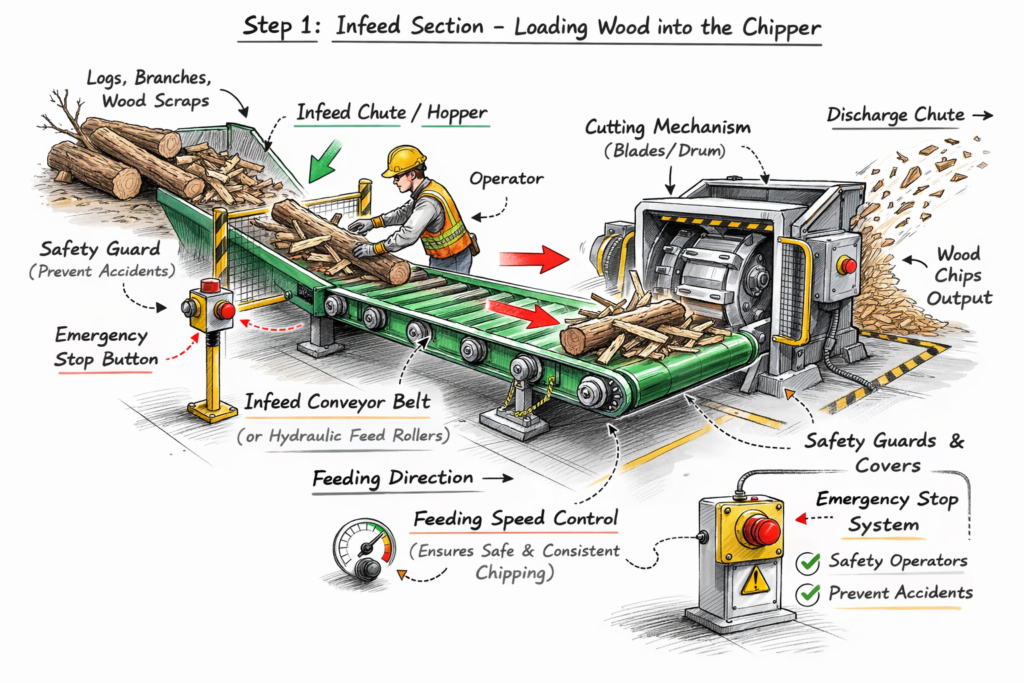

1️⃣ Step 1: Wood Chipper Machine Feeding
The operation starts at the infeed part of the machine.
- Logs, branches or scraps of wood are stacked upon the infeed conveyor belt or infeed chute.
- The wood is pulled towards the cutting mechanism by the conveyor belt (or in some machines, by hydraulic feed rollers).
- The feeding rate is regulated to give safe and constant chipping.
- There are safety guards and emergency stop systems, which protect operators.
2️⃣ Step 2: Feeding Rollers Clamping the Wood chipper machine
After the operator positions the wood properly at the infeed area, the feeding rollers begin their work. They play a crucial role in the process.The rollers grip the wood surface firmly and move it smoothly forward. Manufacturers coat or texture these rollers with rubber to prevent slipping while maintaining consistent pressure. As a result, the wood travels in a straight path without sudden movements or misalignment.
At Manjeet Agro, we pay special attention to the performance and quality of our feeding roller systems. We design and manufacture our feeding rollers with precision and durability in mind. Our rollers provide strong grip and controlled pressure, and they resist wear even during continuous operation.
In addition, the strong grip of the feeding rollers maintains a constant feeding speed throughout the process. This uniform movement prevents defects and surface flaws in the final output. The rollers also adjust their pressure according to the thickness of the wood, ensuring a secure hold without causing damage.
3️⃣ Step 3: Chipping Drum / Cutting Mechanism
After the system feeds the raw material correctly, the chipping drum or cutting mechanism performs the next critical function. This component reduces large wood pieces, biomass, or agricultural residues into smaller, uniform chips for further processing.
The chipping drum consists mainly of a heavy cylindrical rotor mounted on a durable shaft. Sharp cutting knives attach to the drum and rotate at high speed. When material enters the drum, the rotating knives cut it into uniform chips. A counter knife (anvil) sits opposite the rotating blades to ensure precise cutting and control the chip size.
4️⃣ Step 4: Cutting and Shearing Action
A wood chipper operates through a cutting and shearing process. You load wood into the cutting chamber. The infeed rollers then push it toward a rapidly rotating drum or disk equipped with sharp, hardened steel blades.As the drum turns, each blade moves closely past a fixed component known as the anvil or bed knife.
The blade and anvil grip the wood firmly. When the blade reaches the edge of the anvil, it slices through the wood with a strong shearing force. This action is much like scissors cutting paper.The blade focuses pressure along a narrow line, creating a clean and precise cut rather than crushing the material.
The gap between the blade and the anvil, the blade angle, and the feeding speed control the thickness of the chips. Each rotation of the drum delivers multiple quick cuts. This allows the machine to produce consistent and uniform wood chips continuously.
Where to buy a Wood Chipper Machine ?
A wood chipper machine is essential equipment for landscapers, gardeners, farmers, and property owners. It helps them efficiently manage branches, tree limbs, and garden rubbish. When you are intending to invest in one, where to purchase a wood chipper machine price is very essential as much as the type of model. Buy online from Manjeet Agrotech gives the best prices and support.
5️⃣ Step 5: Chip Acceleration & Airflow
Chip acceleration and airflow play a critical role in maximizing machining performance. This is especially important in high-speed operations.When the cutting tool contacts the workpiece, it shears the material into chips. The system must remove these chips quickly to reduce heat and prevent re-cutting. Fast chip removal keeps the cutting edge clean and improves surface finish, tool life, and dimensional accuracy. In contrast, poor chip evacuation increases heat and friction. This leads to tool wear, surface damage, and possible tool breakage.
Airflow supports chip acceleration by directing chip movement away from the cutting zone. Modern machining systems use compressed air or optimized coolant flow. These methods carry chips away from the tool–workpiece interface.Proper airflow design reduces turbulence in the cutting area and maintains thermal stability. It also improves visibility during the machining process.Consistent airflow also prevents chip accumulation in complex geometries or deep holes.
6️⃣ Step 6: Discharge System of Wood Chipper Machine
The expulsion of pieces of wood material is the last step in a wood chipper machine.This step is known as the discharge system, which expels the processed Commercial wood chipper machine in an efficient and safe manner. Once the rotating blades have cut the wood in the drum or disc, the chips are swept away to the discharge chute. This movement is caused by centrifugal force from the high-speed rotation. The system guarantees a constant flow by avoiding clogging. It enables the free movement of material from the cutting chamber to the collection area.
A well-designed discharge system increases productivity while improving chip quality and operator safety. The chute allows the operator to control both the direction and the distance of chip discharge. Many industrial wood chippers include a blower or fan that throws chips farther and maintains a steady output flow.
Components of the Discharge System
Discharge Chute:
A rounded metal tube directs wood chips away from the machine.
Deflector Cap:
An adjustable top section controls the height and direction of the chip flow.
Blower/Fan System:
This component pushes chips outward and supports high-capacity operations.
Outlet Guard:
This guard protects the operator by preventing accidental contact with moving internal parts.
Chip Collection System:
Depending on machine size, this system may include a bagging unit, trailer, or conveyor to collect and transport chips efficiently.
Wood Chipper Machine Manufacturers in india build the discharge system from durable materials to resist abrasion from wood chips. Operators maintain performance by cleaning blockages regularly, checking for rust, and securing the chute properly. In commercial operations, discharge systems often load chips directly into trucks or containers. This streamlines workflow and reduces manual handling.
